RIC-1630D
- Nominal voltage:3~24V(optional).
- Appearance size:diameter 16mm,30mm body length.
- Application:Personal care equipment／Toys/Models／Aeromodelling／Electronics products,medical equipment, precision instruments.
Motor Specifications
| Model | RIC-1630D-050760 | RIC-1630D-072700 | RIC-1630D-120100 | RIC-1630D-120150 | RIC-1630D-240100 | |
|---|---|---|---|---|---|---|
| Voltage | V | 5 | 7.2 | 12 | 12 | 24 |
| No-load Speed | rpm | 7600 | 7000 | 10000 | 15000 | 10000 |
| No-load Current | mA | 25 | 15 | 15 | 25 | 10 |
| Rated Speed | rpm | 6400 | 4800 | 9300 | 13500 | 9000 |
| Rated Current | mA | 260 | 360 | 160 | 350 | 100 |
| Rated Torque | g.cm | 16 | 34 | 17 | 25 | 20 |
| Stall Current | A | 1.6 | 1.1 | 2 | 4.1 | 1 |
| Stall Torque | g.cm | 102 | 108 | 220 | 330 | 220 |

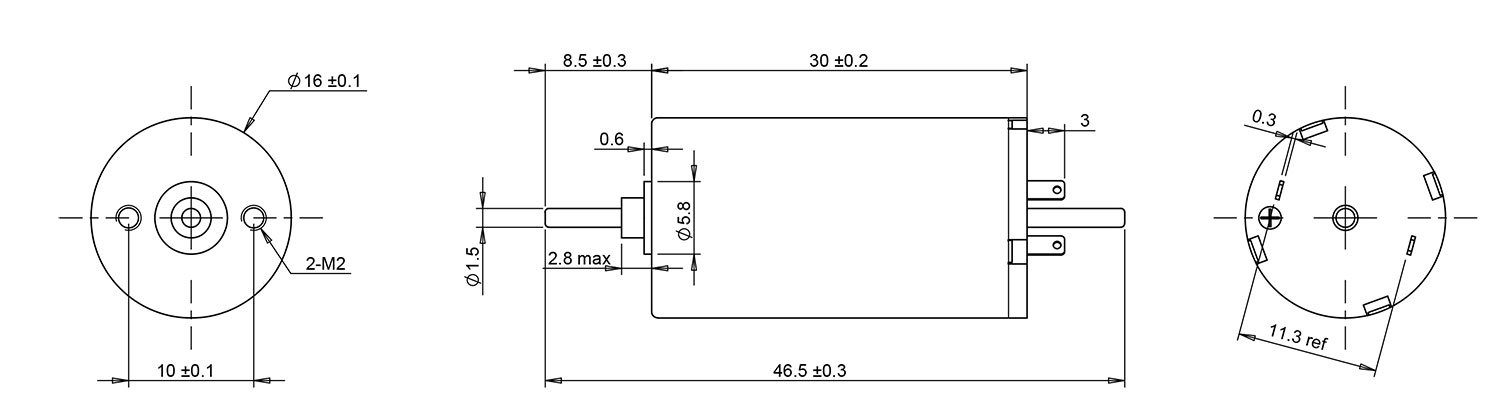

Outline Drawing
REMARKS
Specifications, shaft dimensions, screw holes, connector, gears and other components can be customized to meet customer specific requirements.
