RIC-3260BL
Rated voltage:3V~48V (optional)
Appearance dimension:diameter 32mm, body length 53~68mm.
Motor Specifications
| Model | RIC-3260BL-240145 | RIC-3260L-480145 | |
|---|---|---|---|
| Voltage | V | 24 | 48 |
| No-load Speed | rpm | 14500 | 14500 |
| No-load Current | A | 0.3 | 0.17 |
| Rated Speed | rpm | 13300 | 13300 |
| Rated Current | A | 3.5 | 1.88 |
| Rated Torque | g.cm | 500 | 550 |
| Stall Current | A | 40 | 21 |
| Stall Torque | g.cm | 6300 | 6625 |

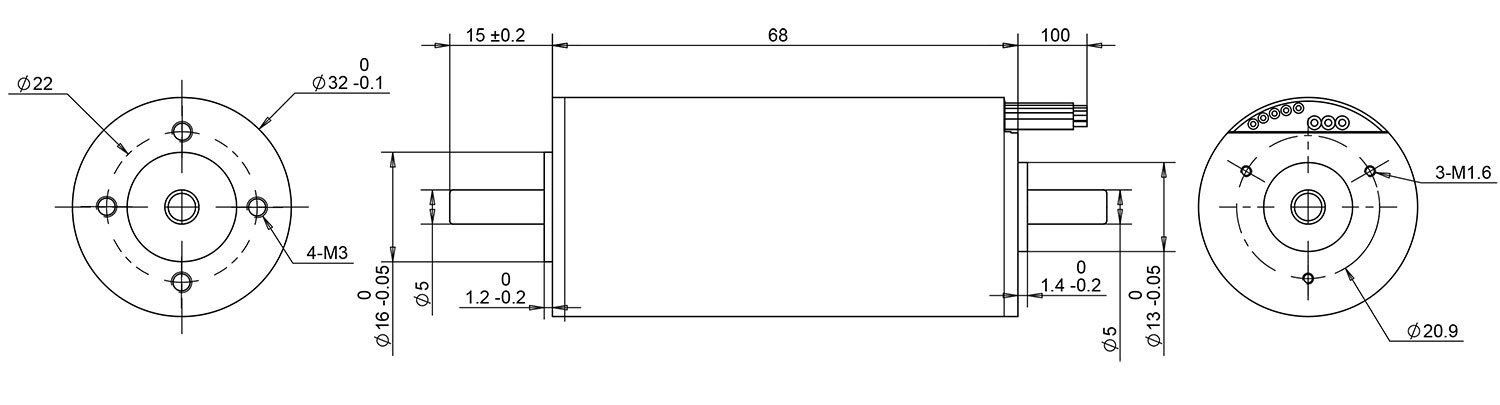

Outline Drawing
REMARKS
Specifications, shaft dimensions, screw holes, connector, gears and other components can be customized to meet customer specific requirements.
