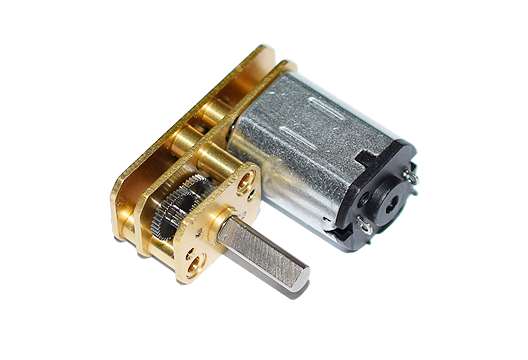

RIC-24GB2419
- Nominal voltage:3-12V.
- Appearance size:diameter 24mm, body length 19mm.
- Application:Models ,Toys,Medical Equipment ,Precise Instruments.etc.
Geared Motor Technical Data
| Rated voltage | Reduction Ratio | 1/150 | 1/350 | 1/500 |
|---|---|---|---|---|
| 12V | Rated Torque(kg.cm) | 0.25 | 0.5 | 0.5 |
| Rated Speed(rpm) | 83 | 35 | 27 | |
| 5V | Rated Torque(kg.cm) | 0.21 | 0.44 | 0.5 |
| Rated Speed(rpm) | 80 | 34 | 25 | |
| 2.4V | Rated Torque(kg.cm) | 0.21 | 0.44 | 0.5 |
| Rated Speed(rpm) | 80 | 34 | 25 | |
| L(mm) | ||||
Motor Specifications
| Model | Voltage | No-load | Rated | Stall | |||||
|---|---|---|---|---|---|---|---|---|---|
| Speed | Current | Speed | Current | Torque | Output | Current | Torque | ||
| VDC | rpm | A | rpm | A | g.cm | W | A | g.cm | |
| FF-N20-05430 | 12 | 16000 | 0.015 | 12500 | 0.06 | 3 | 0.35 | 0.25 | 13 |
| FF-N20-13880 | 5 | 14800 | 0.03 | 12000 | 0.12 | 2.5 | 0.35 | 0.52 | 13 |
| FF-N20-13100 | 2.4 | 14800 | 0.06 | 12000 | 0.2 | 2.5 | 0.31 | 1.2 | 13 |
Outline Drawing
REMARKS
The shaft dimensions and the motor specifications can be customised to meet the customer’s requirements.
This gearbox can be equipped with other types of micro dc motors to suit your different performance and dimension needs.
